Chinese factory pipe plasma cutter good quality plasma pipe cutter 100A 200A 300A pipe cutter cnc plasma

¥4,123.00 CNY

~~¥20,612.00 CNY~~ ¥4,123.00 CNY

Распродажа Продано

Стоимость доставки рассчитывается при оформлении заказа.

Price Range specific prices chat customer service

Количество

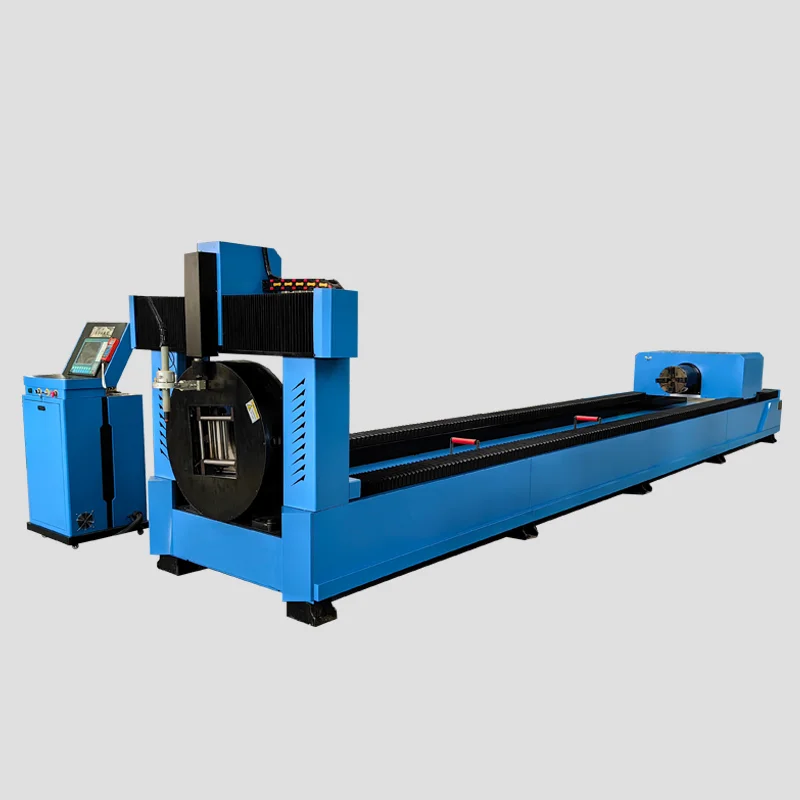

_{SQUARE / ROUND TUBE PLASMA CUTTING MACHINE}

Product Paramenters

Mode	FAST-P6000	FAST-9000	FAST-12000
Working Area	6000mm	9000mm	12000mm
Chuck Diameter	210mm/250mm/320mm/420mm/450mm (optional)
Maximum Moving Speed	200m/min
Cutting Speed	0-120m/min
Plasma Power	63A/100A/120A/160A/200A/300A (optional)
Cutting Thickness	Depends on plasma power
Cutting Table	Serrated mesa

Products Introduction

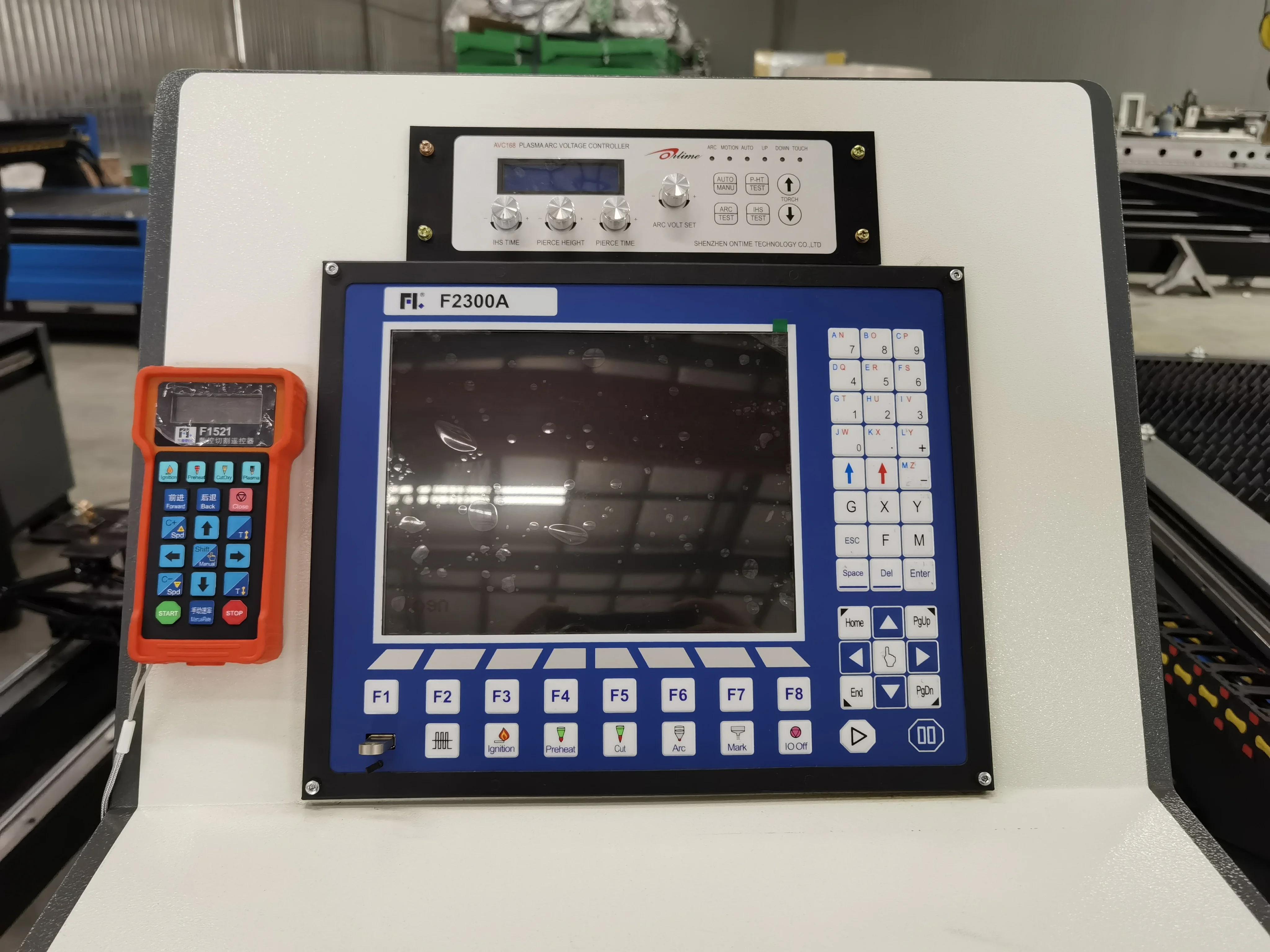

CNC System

The system is highly reliable in design, with anti-plasma interference, anti-lightning, anti-surge capabilities.

Breakpoint recovery, automatic power off recovery function, breakpoint automatic memory.

Plasma Cutting Torch

Plasma cutting torch and anti-collision system.

Effectively prevent damage caused by cutting gun collision.

Flame cutting torch can be added on request.

Plasma Power

High load duration, suitable for heavy industry.Cutting current stepless adjustable, suitable for different thickness of the workpiece. With undervoltage, overheat automatic protection function.

Drive System

Good control performance. As the power system of NC plasma cutting machine, it must have high control ability. Starting, stopping,and turning are all done in a few pulses, and no motion pattern loses a step when running within a certain frequency
range.

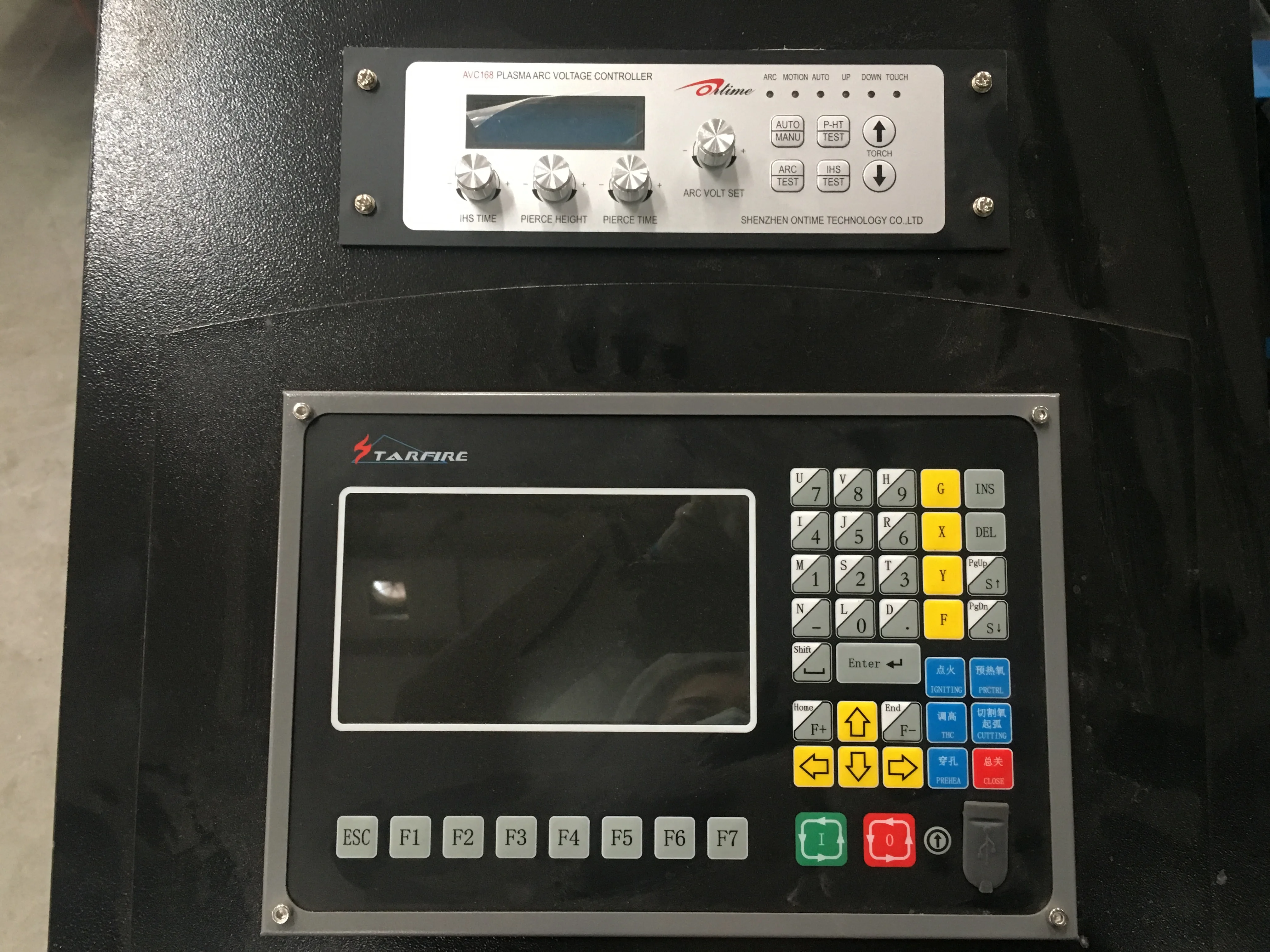

Height Controller

After the cutting nozzle at the end of the cutting torch contacts with the workpiece, precise elevation of the arc height and the height of the cutting torch of the CNC plasma cutting machine within the range of millimeters.
