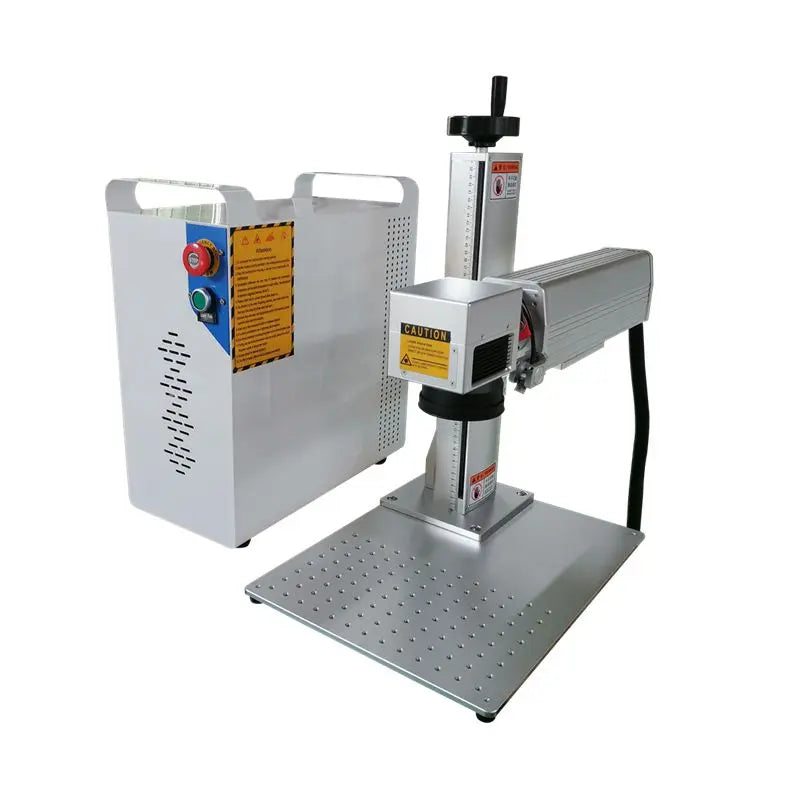

Raycus 30W fiber laser marking machine metal engraving machine split model fiber laser engraving machine
Raycus 30W fiber laser marking machine metal engraving machine split model fiber laser engraving machine
通常価格
¥688.00 CNY
通常価格
¥688.00 CNY
セール価格
¥688.00 CNY
単価
あたり
配送料はチェックアウト時に計算されます。
受取状況を読み込めませんでした
Fiber Laser Marking Machine 30W Raycus ,working size 150*150mm (other working size aviable)
Laser form
| Model | Fiber Laser Marker |
| Laser Power | 30W Raycus |
| Supports Graphical Format | PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF |
| Beam Quality | M2<2 |
| Power Stability | (8h)<±1%rms |
| Pulse Repetition Frequency | 20KHZ----100KHZ |
| Power Consumed | <800W |
| Minimum Line Width | 50μm |
| Minimum Character | 0.3mm |
| Laser Wavelength | 1064nm |
| Working Size | 110*110mm 150*150mm 200*200mm 300*300mm |
| Whole Machine Power | 500W |
| Cooling Way | Air Cooling |
| Operating Voltage | 110/220V ±10%, 50/60Hz |
| Ambient Operating Temperature | 15℃-35℃ |
| Packing | Plywood Wooden Packaging |
| Red Pointer | Double Red Pointer |
| Galvanometer | Scanleb |
| Filed Lens | Laserhous |
| Laser Source | Raycus |
| Optional | Rotary axis |
| Control system | JCZ (EZcad) |
