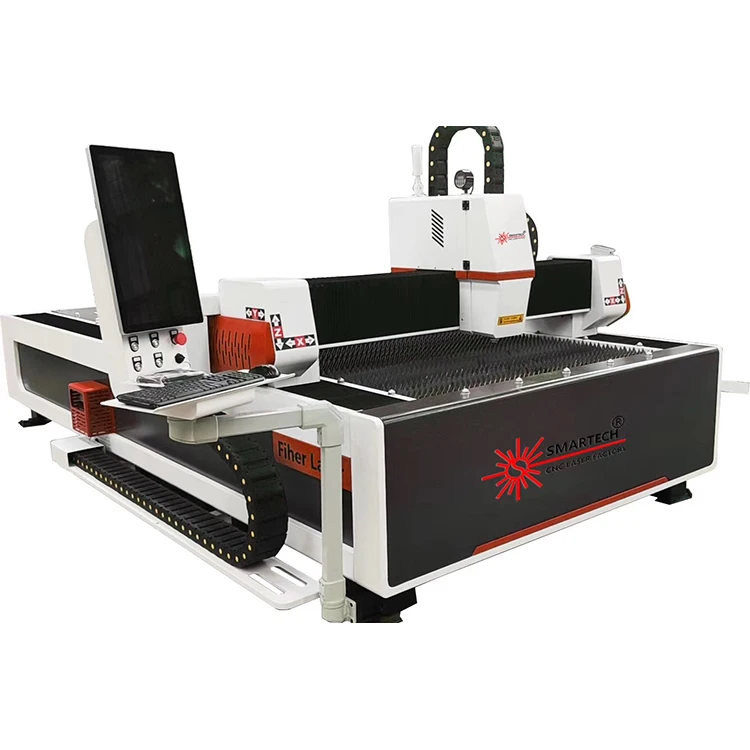

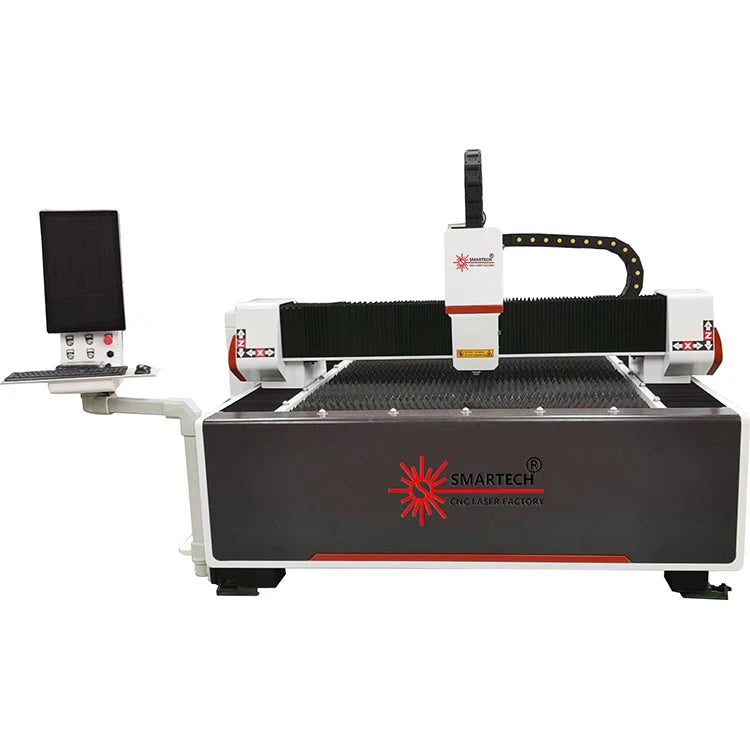

Fiber Laser Lazer Cutting Machine 2000W 3000W Fiber laser Cutter Best Price Maquina de corte por laser de fibra
Fiber Laser Lazer Cutting Machine 2000W 3000W Fiber laser Cutter Best Price Maquina de corte por laser de fibra
Regular price
¥4,128.00 CNY
Regular price
¥275,190.00 CNY
Sale price
¥4,128.00 CNY
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview
Machine Basic Information
UNIT PRICE (USD/SET)Fiber- SF2040
#Working area:2000x4000mm
#Source:-Original Raycus 1000W /2000W /3000W
#Rack and pinion- Original YYC From Taiwan
#Head- WSX
#Guide Rail- Hiwin or PMI.Taiwan
#Germany ball screw transmission
#Support DXF,DXP,NC,G,etc
#Servo-Fuji 1.8 KW For Y axis,1.3KW for X axis,400W Z axis
#Reducer--shimpo
#Controller- cypcut/back off.nesting software.
#Annealing , anti vibration heavy bed.
#Germany imported Schneider electrical parts
#Proportional valve imported from Japan SMC
#Water chiller S&A
Delivery Time 30 working days
Payment Term 30% T/T in advance, 70% after machine production before delivery
Warranty 5 years(for any unintentional damages during warranty period, we would send new parts for free)
FEATURES AT A GLANCE
Application industry:
Metal cutting, electrical switch manufacturing, elevator manufacturing, household electrical appliance manufacturing,
cooking utensils, tools machining , such as a variety of machinery manufacturing and processing industry.
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,
Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet,
Brass,Sheet, Bronze,Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Technical Parameters:
Model S-Fiber-1325 S-Fiber-1212 S-Fiber-1530 S-Fiber-2040
Working Area 2500X1300mm 1200*1200mm 3000X1500mm 4000x2000mm
Laser Type Original Raycus Fiber laser generator
Laser Power 500W/750W/1000W/1500W/2000W/2500W/3000W/4000W
Total Power Consumption <14KW <18KW <22KW <26KW <40KW
Transmission Precise pinion and rack, dual-drive transmitting
Beam Quality <0.373mrad
Positioning Accuracy ≤ ±0.03mm/m
Re-positioning Accuracy ≤±0.02mm/m
Min line width ≤0.15mm
Cooling System Water cooling
Max Speed 0-120m/min(depending on material and thickness)
Power Supply Rated Voltage 3-phase 380V/50Hz
X-axis Stroke 2500mm 1200mm 3000mm 4000mm
Y-axis Stroke 1300mm 1200mm 1500mm 2000mm
Z-axis Stroke 100mm/120mm
Working Table Rack working platform
Oil Box Auto oil lubricating system
Laser wavelength 1070nm
Control system CYPCUT
Location System Red dot indicator
Max load-bearing of work table 500KG
Machine Weight 3000-8000kg 5000KG
Machine Dimension 3500x1800x1600mm 1700*1700*1600mm 4300x2500x1600mm 5800X3500X2050mm
Rotary device dimension 4400*600*900(3M) / 7850*600*780(6M)
Continuous working time 24 hours
Rated voltage and frequency : 380V/50Hz/60Hz/60A
Acceleration 1.5 G
Presser of N2/O2/AIR 15-20/6-8/15-30 Bar
Support graphic format PLT,AI,BMP,DST,DXF format (support for CORELDRAW, AI,PHOTOSHOP, AUTOCAD)
Remark Automatic exchange worktable, cover(option)
Standard and Optional Parts of Fiber laser cutting machine
Product name Fiber laser cutting machine Model SJF1530
SJF4515/ SJF4020/ SJF6020
Machine frame Welded machine frame Working area 1500*3000 2000*4000mm
Overall dust collector 1500*4500mm 2000*6000mm
Gantry Aluminum cast 1500*4500mm 2500*6000mm
Laser source Raycus (Standard) Other IPG/ Max/ Nlight
Power 500W Other 750W/1000W/1500W/2000W/3000W/6000W
Transmission Z axis ball screw TBI Grinding level ball screw
X Y axis Gear-rank 1)Apex 2)YYC
Rails X Y Z axis HIWIN
Motor X Y: 1000W Z: 400W According to laser power 1)Fuji 2)Mitsubishi 3)PANASONIC 4)YASKAWA
Reducer Japan Shimpo
Laser cutting head WSX Other Au3tech/ Raytools
Control system Cypcut / Au3tech Controller and software ; Remove controller included
Water chiller S&A (According to laser power)
Proportional valve Included Taiwan AIRTAC/ Japan SMC
Electric Device France Schneider
Industrial PC Included
Voltage stabilizer Optional according to customer local voltage
Optional part 1) Exchange table
2) Cabin

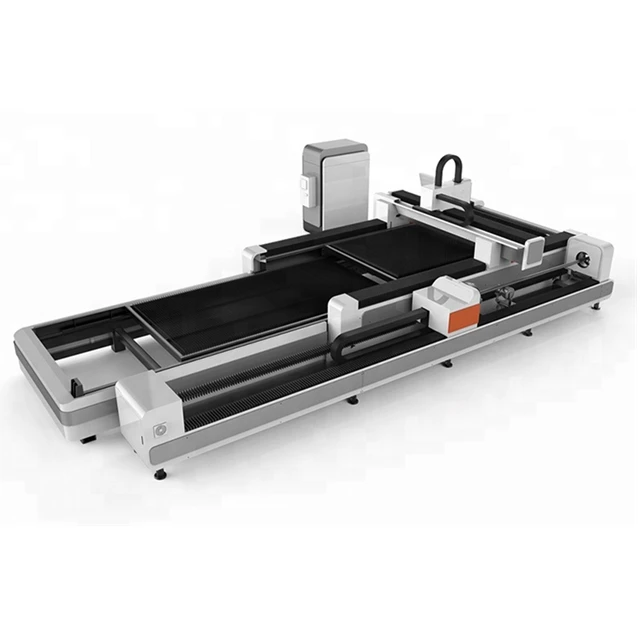

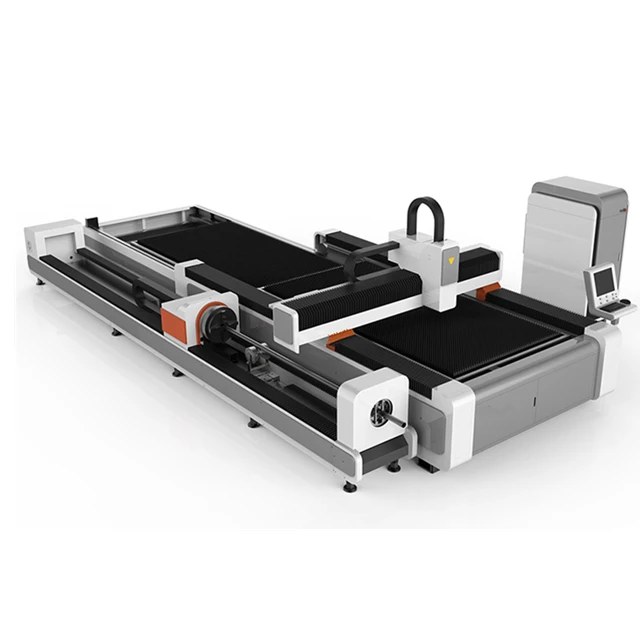

3) Rotary for tube and profile
Equipment work and environmental requirements Requirement
1 Cutting with auxiliary gas:Clean, dry compressed air and high purity oxygen
(O2) and nitrogen (N2) ,purity no less than 99.9% purity
2 The compressed air supply device
(1) the rated pressure: 14 bar
(2)Capacityt: 1 m3
Equipment features：
1). Fiber laser cutting machine for metal sheet cutting. Suitable for cutting stainless steel, carbon steel,
galvanized, or other non ferrous metals, like: copper and Aluminum.
2). Heavy duty welded machine frame, after over 1000 degree thermal treatment and vibration aging,
will not deformation in long term use, and keep stable and high precision.
3). Machine with Aluminium cast gantry, aerospace standard inside struction, with the highest strength
among other gantry and light weight, improve machine speed, crosion resistance, anti-oxidation,
durable in long term use.
4). High quality cutting effect, no need for second process, allow cut with complicated drawings.
5). For metal component, precision parts processing, steel processing industry, machinery manufacturing industry, automobile manufacturing industry, central air conditioner, advertising light and panel, metal art craft and so on. Suitable for high precision metal cutting.
6). Easy optional, can edit drawings on site, other language version controller can be customize.
7.)Professional laser optical system and imported lens, stable and reliable;
8.)Efficient and stable programming and control system, simple and easy to learn and humanization, compatible with a variety of CAD drawing formats, intelligent arrangement cost saving, automatic cutting path matching saves processing time;
9.)Less energy consumption and low cost; high stability, simple and convenient maintenance and low maintenance cost;
10.).No mold, flexible processing, can meet the processing requirements of various special-shaped workpiece;
11.)High cutting efficiency, high cutting quality, no noise, and the Cutting speed is up to 30m/min when cutting sheet; Seam deformation is small, the appearance is smooth, beautiful;
12.)High precision servo motor, guide rail, gear rack, ensure the machining efficiency and machining accuracy, the stability and reliability of the equipment is greatly improved.
13.)Machine tool, crossbeam and worktable adopt integral welding structure,in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, and also keep the 20 years of normal operation without deformation.
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
SIMILAR PRODUCTS
Service
Lifetime after sale service.
Machine warranty: 5 years.(For any questions during warranty period,we would send new parts to you for free!)
On-site training is both available at buyers’ place or seller’s factory
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
If your machine has big problems if by any chance,our engineers would arrive your place to debug and fix.
Could be remote control at anytime if needed.
Lifetime 24 hours after sale service.
FAQ
-Q What is the payment terms?
A:Western Union,Cash,T/T
-Q How long is the delivery date?(After getting the deposit)
A: Delivery time is 5-7 working days for standard machine models,please confirm with us before payment.
-Q How about the shipping ways?
A:By sea or by air
-Q Is on site training is available ?
A: Yes, we could provide training in our factory or at your workshop after machine arrival.
-Q Where is your factory located? How can I visit there?
A:Jinan City, Shandong Province, China, about 2hours train from Beijing and Shanghai.
-Q Can I arrange sample for cutting test?
A:Yes, always welcome.
-Q How about your laser machine package?
A: Standard export wood package with free fumigation
-Q How about the quality guarantee period?
A:5 Years for whole machine
-Q How can you guarantee the production quality ?
A:We have 15years experience of QC team; strictly quality control system in our production process.
-Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
